Week 13

Published 14th January 2019 by Henry

Introduction to VFX. Riot Games tutorials.

http://www.tharlevfx.com/

Choose a VFX area, 1 week study project

Afternoon: Presentations


Materials

Conveyor belt scene

Node shortcuts – M click for Multiply, S click for Scalar etc

Turn on Live Update and Live Nodes to see what everything’s doing

Pan and Rotate textures

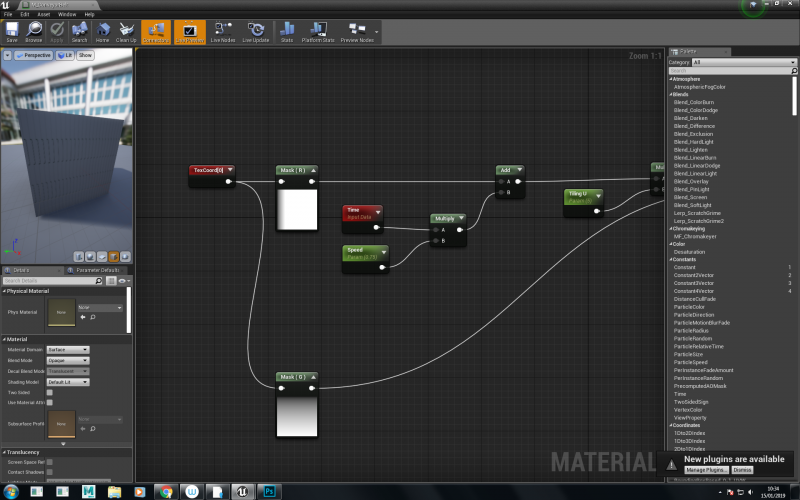

Pan across

Rotation Speed

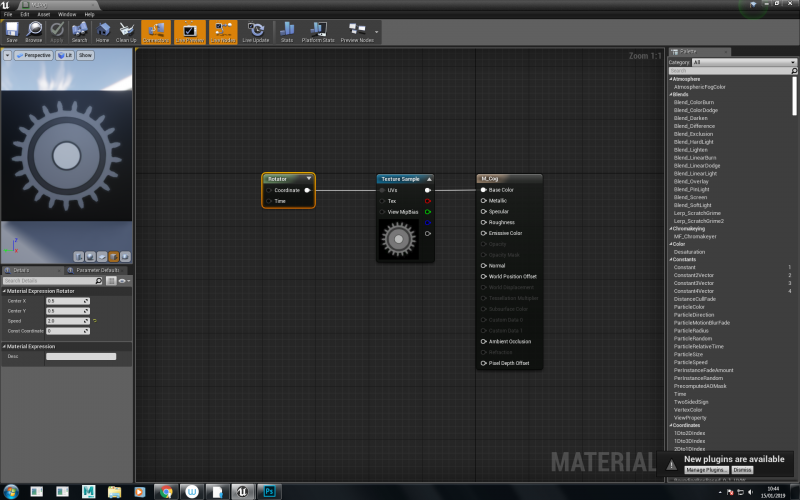

Rotation

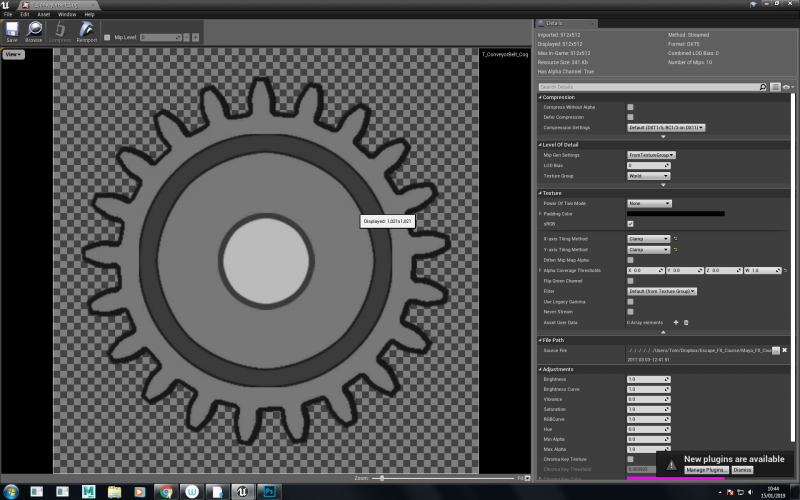

Texture properties – Tiling

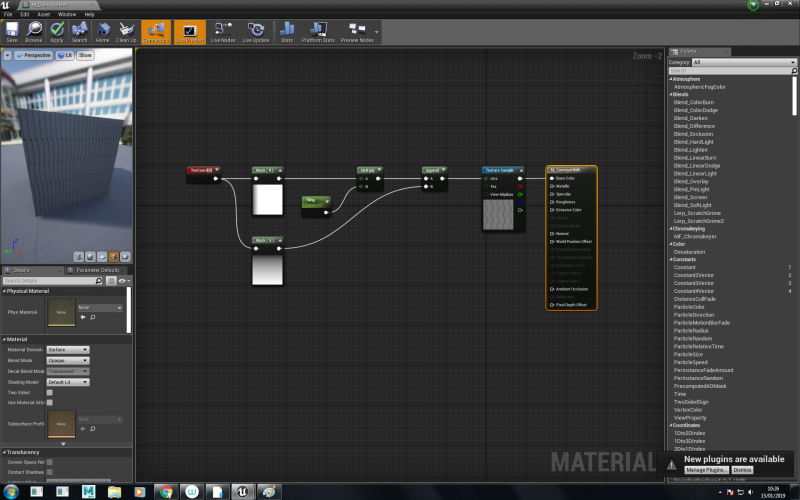

Tiling a texture

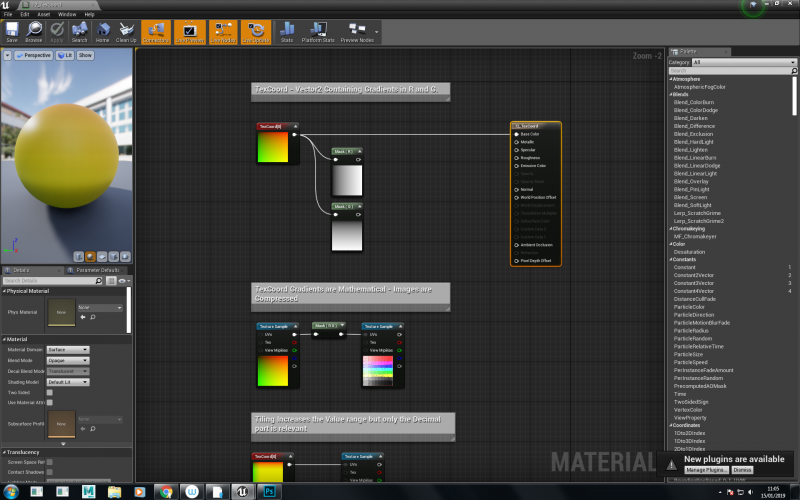

Tom’s Useful Common Mats

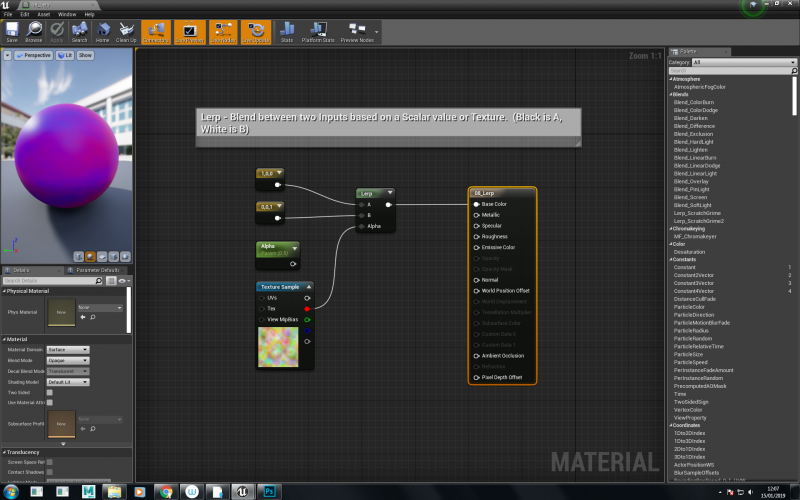

LERP Explained

MPC – Useful for creating globals across materials so you can change things across the scene




DustyWindow

Iterative process – don’t spend loads of time on something only to realise it’s shit

Material Blend Mode – additive for light as it makes things brighter

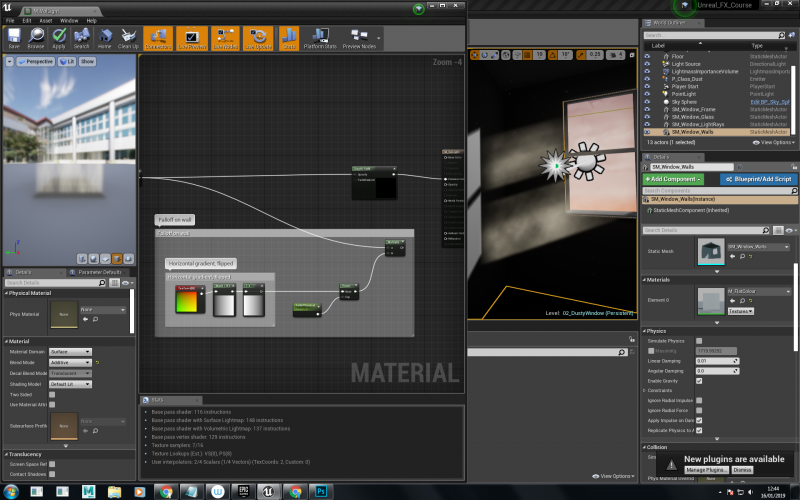

Depth Fade node for removing clipping lines

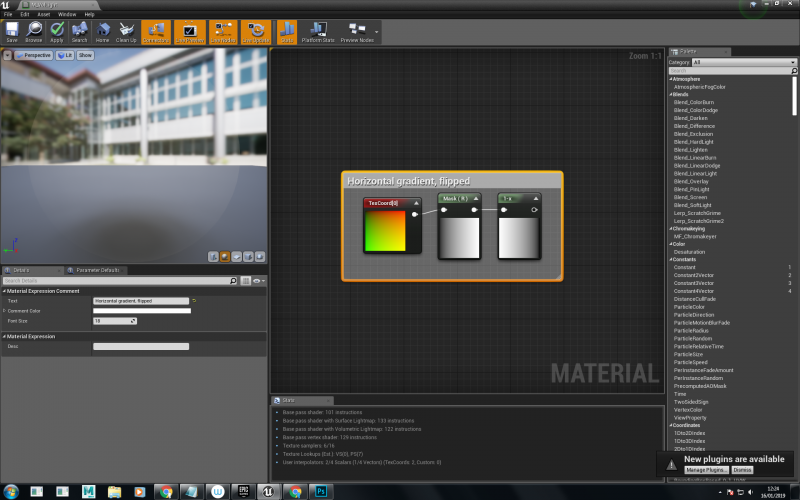

Horizontal gradient flipped horizontally

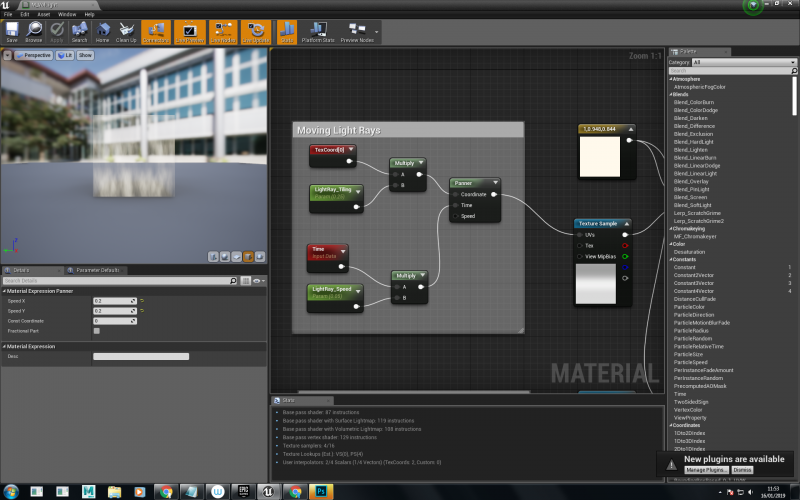

Panning Light Rays

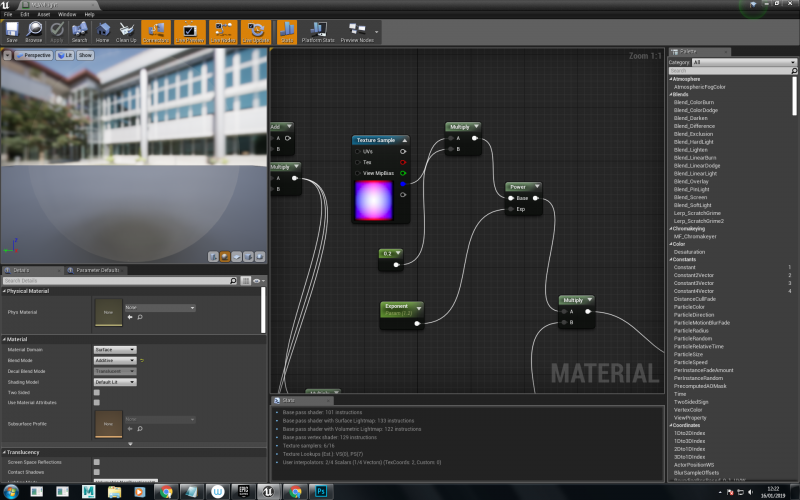

Power node to control contrast of mask

Custom Depth – Thomas Looman



Emitters

Emitter time and particle time – mostly use particle tim

Graph

Ctrl click to add a point

Alt Ctrl click drag to select multiple

Spacebar to reset emitter

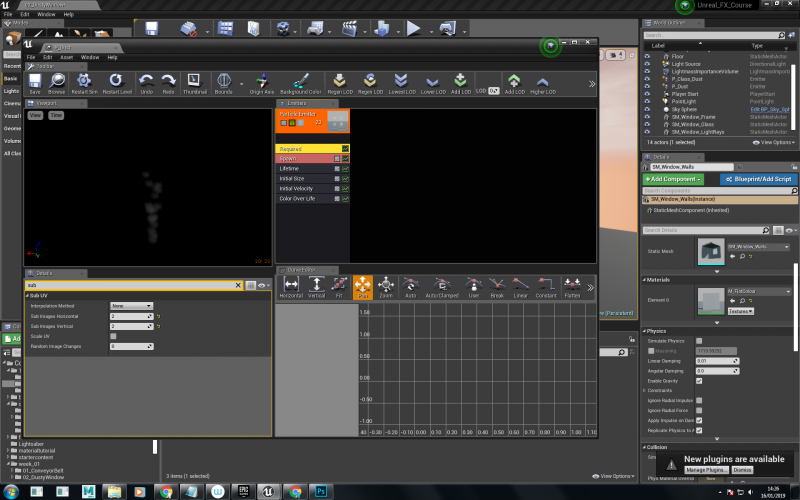

Required – Sub UV to select parts of an image as particles (H and V)

Need to add a Sub UV index node and then Random intrepolation so the emitter selects a random part of the image for the particle.

Initial Location – Make particles fill a box volume




Sandstorm

Multiplying a normal map makes no visual effect because pythagoras. Multiplying the length of the normal won’t make any difference because it affects XYZ equally.

Use power node to increase contrast of a texture, as it will scale rather than clip (i.e. 1 will stay 1, 0 will stay 0)

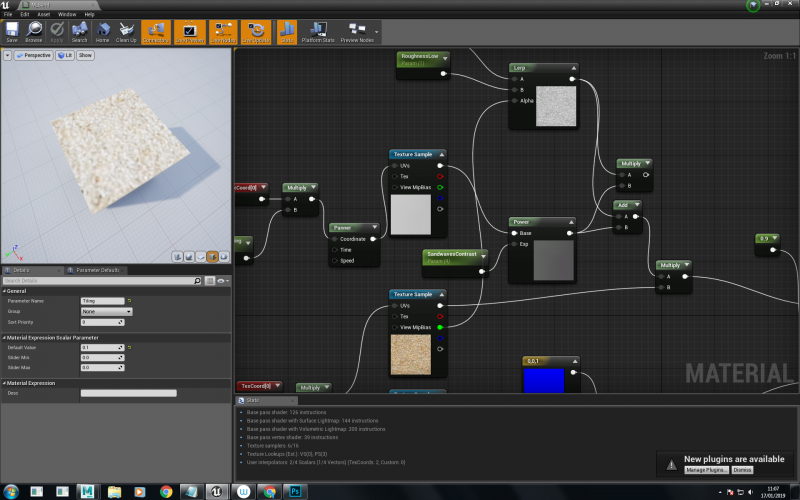

Power for contrast

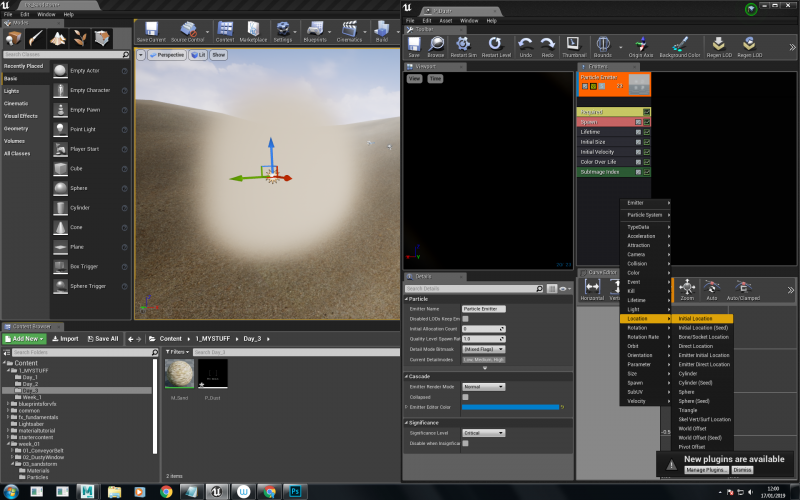

Particle spread in a box is Initial Location

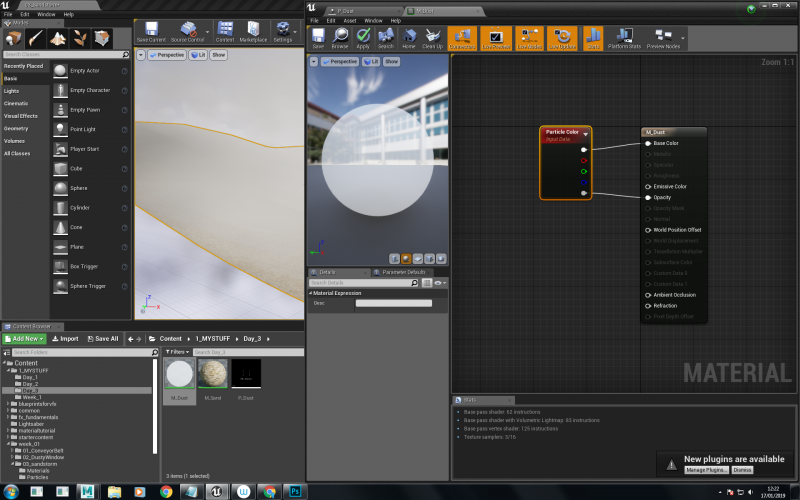

Particle Colour node takes colour from Colour Over Life

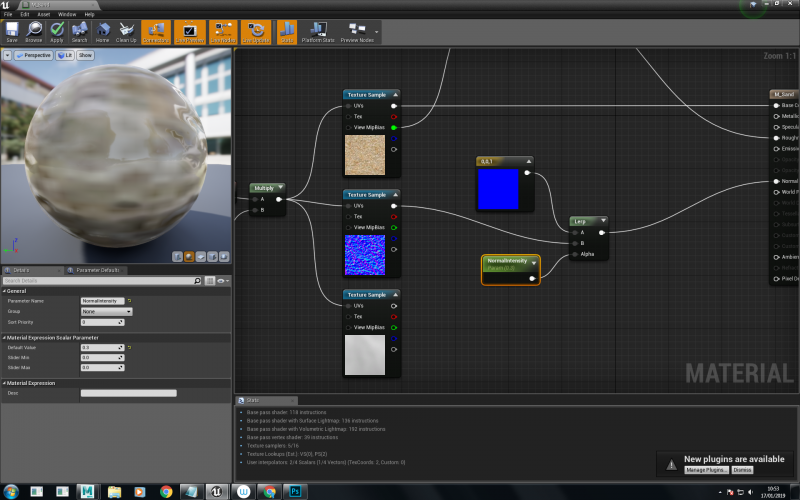

Normalising a normal map using blue and LERP



Dynamic Parameter – sends values to material (Parameter>Dynamic in emitter, Dynamic Parameter in material)



Camera Clipping

Emitter particles will appear in a flash. So use camera depth fade node in material:

WeAreMidnight Event Visuals



Maya

Shift + W : create keyframe for animation

Viewport: View > Settings > Resolution Gate – shows the rendered area of the scene

DirectX Development Kit: Download it to see Targa thumbs






GPU Particles

Right click > Type > GPU Sprites

Because of the way GPU calculates things, a bounding box is needed so the GPU knows when the emitter is on screen:



https://docs.unrealengine.com/en-us/Engine/Rendering/Materials/ExpressionReference/Particles



Vector Grids

Import the UE4 vector grid shelf into Maya.

FX > Fluids> Create 3D Container

Display > Boudary Draw > Full

Play theanimation to see the emitter

Check the Velocity Draw checkbox to see arrows for the forces within the container

Velocity Draw Skip – removes some of the arrows so you can see
